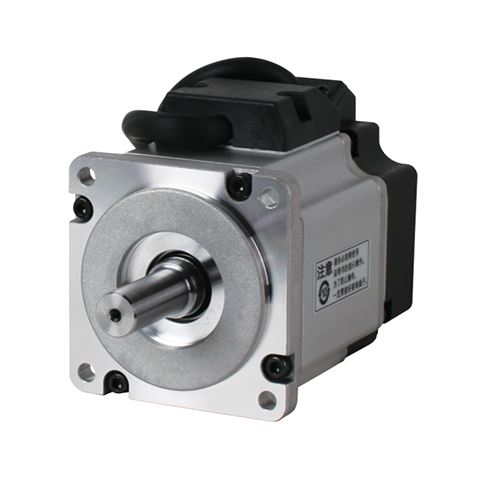

Động Cơ Motor Servo 750W 200V Panasonic MINAS A6 MSMF082L1U2

Driver Servo / Panasonic

Family Name	MINAS A6
Series	MSMF Series
Type	Low inertia
Protection class	IP65
About Enclosure	Except rotating portion of output shaft and leadwire end.
Environmental Conditions	For more details, please refer to the instruction manual.
Flange sq. dimension	80 mm sq.
Flange size (mm)	80
Motor lead-out configuration	Lead wire
Motor encoder connector	Lead wire
Power supply capacity (kVA)	1.8
Voltage specifications (V)	200
Rated output (W)	750
Rated current [Reference value] (A rms)	4.1
Holding brake	without
Mass (kg)	2.3
Oil seal	with
Shaft	Key-way, center tap
Rated torque (N ⋅ m)	2.39
Continuous stall torque (N ⋅ m)	2.39
Momentary Max. peak torque (N ⋅ m)	7.16
Max. current [Reference value] (A 0-p)	17.4
Regenerative brake frequency (times/min)	Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283
About regenerative brake frequency	Please refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)	3000
Max. rotational speed (r/min)	6000
