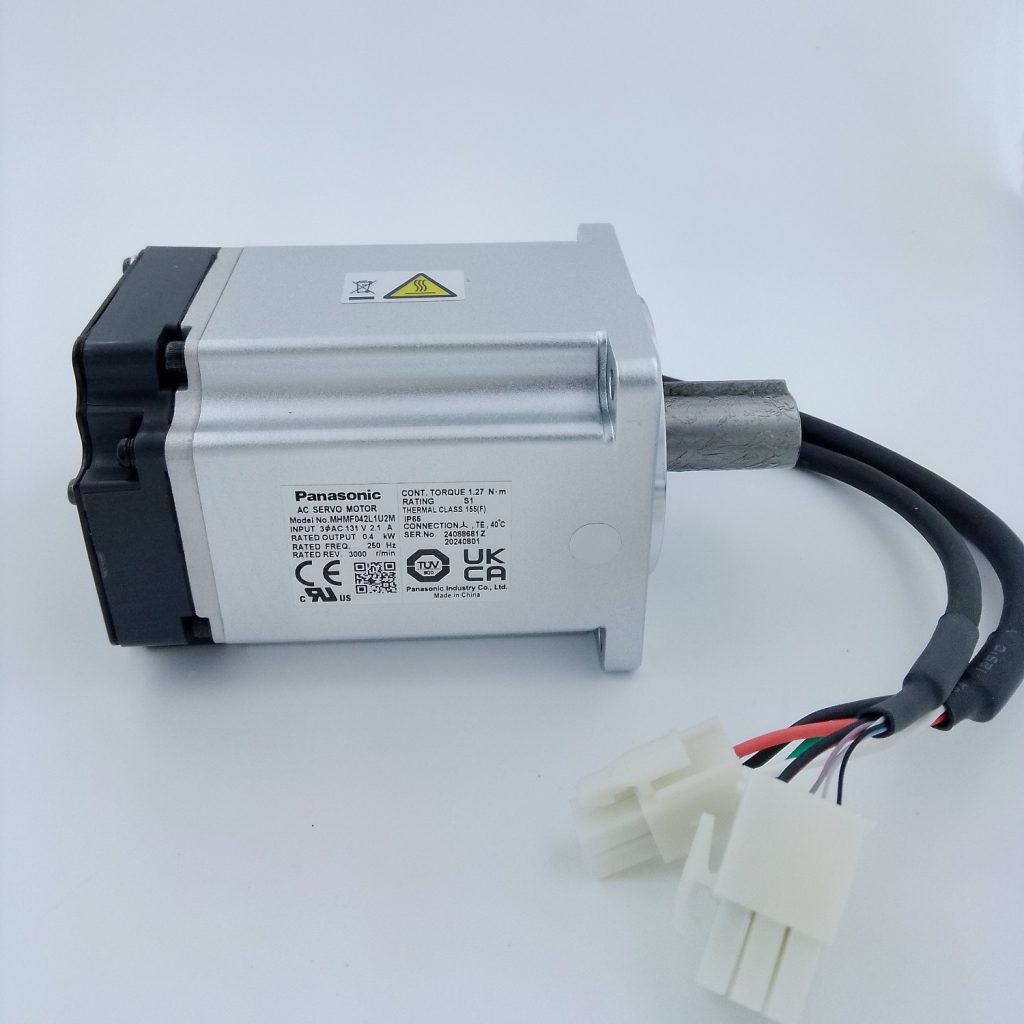

Động Cơ Motor Servo 400W 200V Panasonic Minas A6 MHMF042L1V2

Driver Servo / Panasonic

Tình trạng: Còn hàng
Hãng sản xuất: Panasonic
Mã thiết bị: MHMF042L1V2
Bảo hành: 12 Tháng
Xuất xứ: Trung Quốc

Part Number	MHMF042L1V2
Product details	High inertia, Lead wire type
Family Name	MINAS A6
Series	MHMF Series
Type	High inertia
Protection class	IP65
About Enclosure	Except rotating portion of output shaft and leadwire end.
Environmental Conditions	For more details, please refer to the instruction manual.
Flange sq. dimension	60 mm sq.
Flange size (mm)	60
Motor lead-out configuration	Lead wire
Motor encoder connector	Lead wire
Power supply capacity (kVA)	0.9
Voltage specifications (V)	200
Rated output (W)	400
Rated current [Reference value] (A rms)	2.1
Holding brake	with
Mass (kg)	1.6
Oil seal	with
Shaft	Key-way, center tap
Rated torque (N ⋅ m)	1.27
Continuous stall torque (N ⋅ m)	1.40
Momentary Max. peak torque (N ⋅ m)	4.46
Max. current [Reference value] (A 0-p)	10.4
Regenerative brake frequency (times/min)	Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283
About regenerative brake frequency	Please refer to the details of [Motor Specification Description] , Note: 1, and 2.
Rated rotational speed (r/min)	3000
Max. rotational speed (r/min)	6500
Inertia of rotor ( x10^-4 kg ⋅ m²)	0.58
Recommended inertia ratio	30 times or less
About recommended moment of inertia ratio of the load and the rotor	Please refer to the details of [Motor Specification Description] ,Note: 3.
Rotary encoder: specifications	23-bit Absolute/Incremental system
Notice	When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.
Rotary encoder: Resolution	8388608
