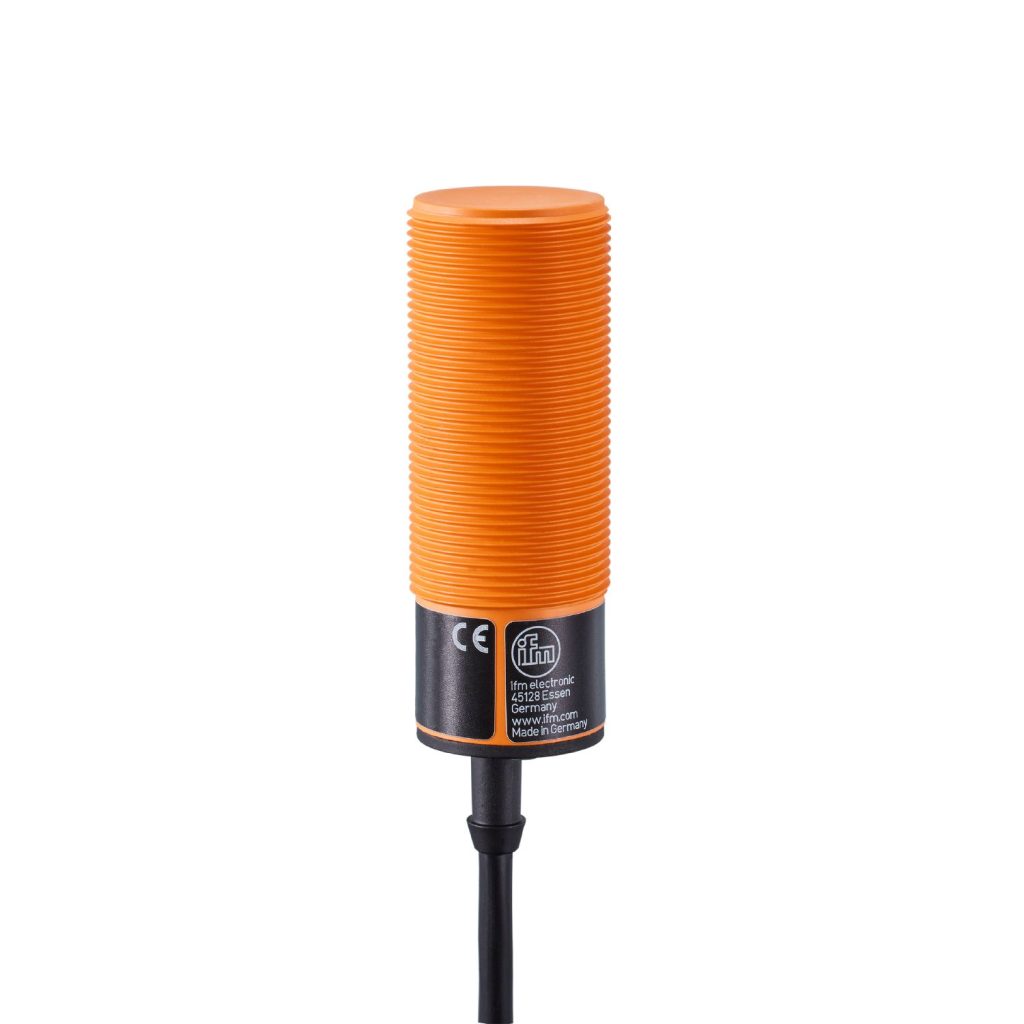

Cảm Biến Điện Dung Capacitive Sensor IFM KI0209

Cảm Biến Điện Dung / Ifm

Tình trạng: Còn hàng
Hãng sản xuất: Ifm
Mã thiết bị: KI0209
Bảo hành: 12 Tháng
Xuất xứ: Đức

Cảm Biến Điện Dung Capacitive Sensor IFM KI0209 có thể thay thế cho cảm biến điện dung DOL 27 SCR MÃ 105301, 105304

Output function: normally closed
Sensing range[mm]: 15
Housing: threaded type
Dimensions[mm]: M30 x 1.5 / L = 81
Operating voltage[V]: 20…250 AC/DC
Protection class: II
Reverse polarity protection: no
Max. power-on delay time[ms]: 300
Output function: normally closed
Max. voltage drop switching output DC[V]: 8
Max. voltage drop switching output AC[V]: 10
Minimum load current[mA]: 5
Max. leakage current[mA]: 2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC)
Permanent current rating of switching output AC[mA]: 200; (350 (…50 °C))
Permanent current rating of switching output DC[mA]: 200; (350 (…50 °C))
Short-time current rating of switching output[mA]: 2200; (20 ms / 0,5 Hz)
Switching frequency AC[Hz]: < 2
Switching frequency DC[Hz]: < 2
Short-circuit proof: no
Overload protection: no
Sensing range[mm]: 15
Sensing range adjustable: yes
Factory setting sensing range[mm]: 15
Real sensing range Sr[mm]:15 ± 10 %
Operating distance[mm]: 0…12.1
Protection: IP 65
Increased immunity: yes; (increased immunity to conducted radio frequency interference)
Tests / approvals
EMC: EN 60947-5-2
Weight[g] 195.5
Housing: threaded type
Mounting: non-flush mountable
Dimensions[mm]: M30 x 1.5 / L = 81
Thread designation
