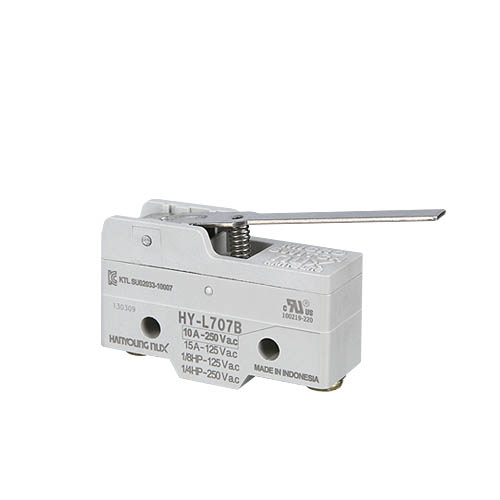

Công Tắc Hành Trinh Limit Switch Hanyoung HY-L707A

HY-L707A (cần ngắn)
HY-L707B (cần vừa)
HY-L707C (cần dài)
HY-L707D (cần siêu dài)

Model		Push button	Roller lever	Lever	Roller push button
		P701-A, B, C, D	R704-A, B, C 2W	L707-A, B, C, D	PR708-A, B
Appearance
Contact structure		M4-5.5 screw tightening, 1c contact
Contact material		AgCdO
Protective structure		Standard type
Rated current(le)		10 A 250 V a.c
Dielectric strength		2,000 V a.c 50/60 ㎐ for 1min (between the terminal and non-recharging metal part)
Insulation resistance		Min 100 ㏁ (500 V d.c insulated ohmmeter)
Contact resistance		Max 50 ㏁ (default value)
Rated voltage(Ue)		250 V a.c
Vibration		Double amplitude 1.5mm, frequency 10 ~ 55 ㎐, continuously 2 hour
Shock		100 ㎨ (durability), 50 ㎨ (malfunction)
Allowable operation speed		0.1 ㎧ ~ 1 ㎧
Life expectancy	Mechanical	Min 1 million times (less than open/close frequency 120 times/min)
	Electrical	Min 300 thousand times (less than open/close frequency 20 times/min)
Ambient temperature		-10 ~ 80 ℃
Ambient humidity		25 ~ 95 % R.H.
Weight		Approx 800g (10 HY-R704B 1 box)
