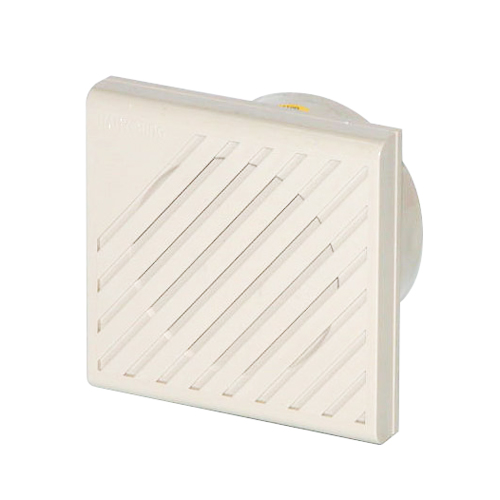

Còi Báo Buzzer Cho Tủ Điện 60mm Hanyoung HY-606

Model	Code		Description
HY-	–		Power Buzzer
Dimension	256		For Ø25
	306		For Ø30
	606		Rectangular panel flush type (For Ø66)
	606N		Rectangular panel extended type ( 80)
Power supply voltage		1	110 V a.c, 50 / 60 Hz
		2	220 V a.c, 50 / 60 Hz
		12	12 V d.c
		24	24 V d.c

Model	Ø25	HY-256-1	HY-256-2	HY-256-12	HY-256-24

	Ø30	HY-306-1	HY-306-2	HY-306-12	HY-306-24

Power supply voltage		110 V a.c	220 V a.c	12 V d.c	24 V d.c
Power frequency		50 / 60 Hz		–
Power consumption		Approx 4 VA		30 ㎃ max.
Decibel		85 ㏈ (1m distance)
Insulation resistance		100 ㏁ (500V d.c insulation resistance meter)
Dielectric strength		1,000 V a.c for 1min (recharging part-non recharging part)
Ambient temperature		-10°C ~ 55°C
Ambient humidity		45 – 85 % R.H.

Model	flush type	HY-606-1	HY-606-2	HY-606-12	HY-606-24

	extended type	HY-606N-1	HY-606N-2	HY-606N-12	HY-606N-24

Power supply voltage		110 V a.c	220 V a.c	12 V d.c	24 V d.c
Power frequency		50 / 60 Hz		–
Power consumption		Approx 8 VA		30 ㎃ max.
Decibel		85 ㏈ (1m distance)		85 ㏈ (1m distance)
Insulation resistance		100 ㏁ (500 V d.c insulation resistance meter)
Dielectric strength		1,000 V a.c for 1 min (recharging part-non recharging part)
Ambient temperature		-10°C ~ 55°C
Ambient humidity		45 – 85 % R.H.
