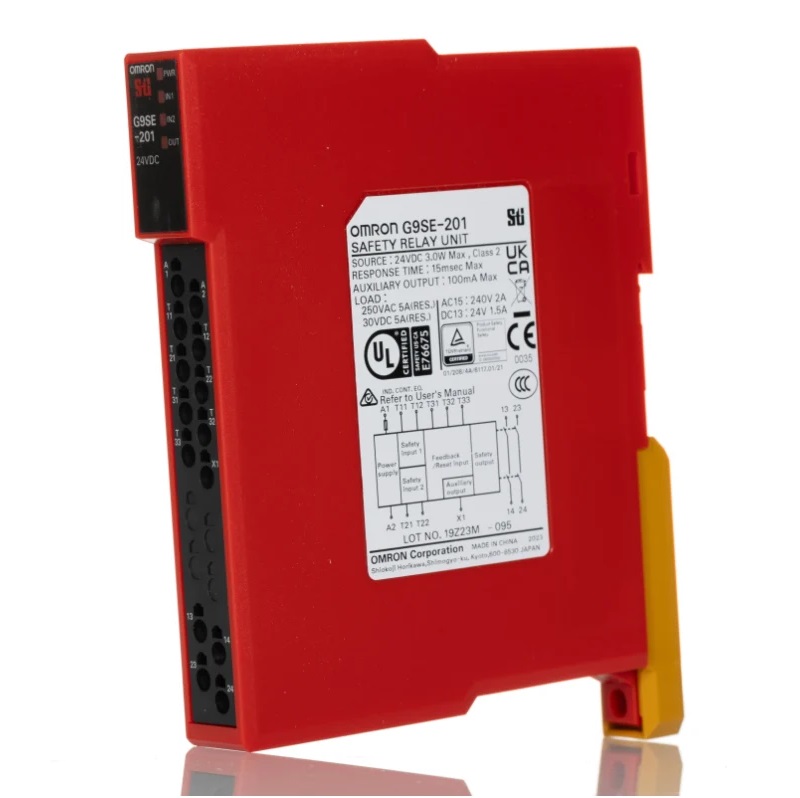

Rờ Le An Toàn Safety Relay Omron G9SE-201

Thiết Bị Điện Khác / Omron

Tình trạng: Còn hàng
Hãng sản xuất: Omron
Mã thiết bị: G9SE-201
Bảo hành: 12 Tháng
Xuất xứ: Trung Quốc

Model			G9SE-201	G9SE-401	G9SE-221-T[]
*Operating time (OFF to ON state) 2**			100 ms Max. *3
*Response time (ON to OFF state) 4**			15 ms Max.
Accuracy of OFF-delay time			–		Within plus or minus 10% of the set value
Inputs	Input current		5 mA Min.
	ON voltage		11 VDC Min.
	OFF voltage		5 VDC Max.
	OFF current		1 mA Max.
	Maximum cable length		100 m Max.
	Reset input time		250 ms Min.
Contact outputs	*Contact resistance 5**		100 mΩ
	Mechanical durability		5,000,000 operations Min.
	Electrical durability		50,000 operations Min.
	Switching specification Inductive load (IEC/EN60947-5-1)		AC15: 240 VAC 2 A DC13: 24 VDC 1.5 A
	Minimum applicable load		24 VDC 4 mA
	Conditional short-circuit current (IEC/EN60947-5-1)		100 A *6
Pollution degree			2
Over voltage category (IEC/EN60664-1)			Safety output: Class III, the others: Class II
Insulation specification	Isolation voltage (Ui)		250 VAC
	Impulse withstand voltage (IEC/ EN60947-5-1)	Between input and output	6 kV
	Impulse withstand voltage (IEC/ EN60947-5-1)	Between different poles of output	6 kV (between 13-14/23-24 and 33-34/43-44 (37-38/47-48)) 4 kV (between 13-14 and 23-24, between 33-34 (37-38) and 43-44 (47-48))
	Dielectric strength	Between input and output	2,200 VDC
	Dielectric strength	Between different poles of output	1,500 VAC
	Insulation resistance		100 MΩ
*Vibration resistance 7**			Frequency: 10 to 55 to 10 Hz Amplitude: 0.35 mm half amplitude (0.7 mm double amplitude)
Mechanical shock re- sistance *7	Destruction		300 m/s²
Mechanical shock re- sistance *7	Malfunction		100 m/s²
Surrounding Air Temperature			-10 to 55°C (No freezing or condensation)
Ambient humidity			25% to 85%RH
Degree of protection			IP20
Weight			approx. 150 g	approx. 180 g
