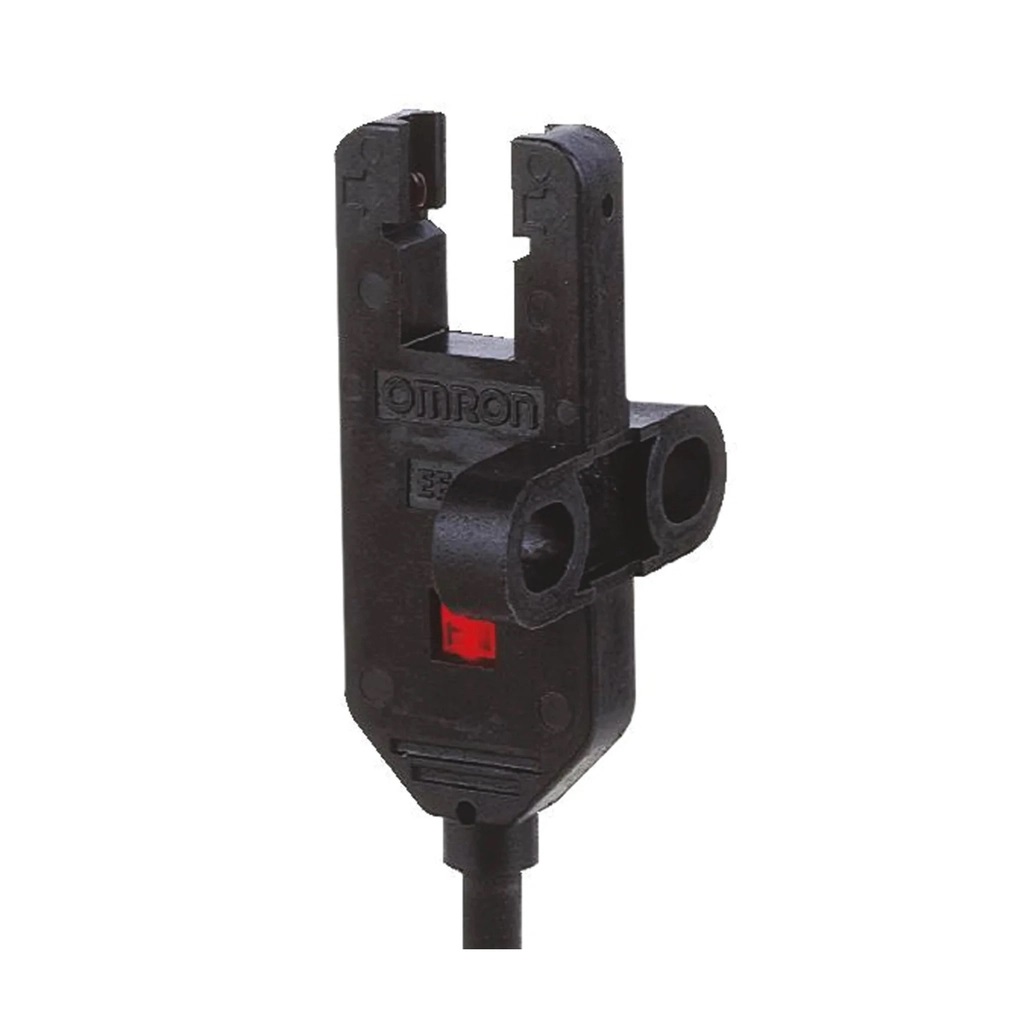

Cảm Biến Quang Photomicro Sensor Omron EE-SX772

Cảm Biến Quang / Omron

Type		Grooved Type (T-shaped)
Luminous method		Non-modulated
Sensing method		Through-beam type
Sensing distance		Slot width: 5 mm
Operation mode		Dark-ON
Standard sensing object		Opaque, 2 x 0.8 mm min.
Differential distance elements		0.025 mm
Light source （Peak wavelength）		GaAs infrared LED (940 nm)
Indicator		Light indicator (red)
Power supply voltage		5 to 24 VDC ±10% ripple (p-p) 10 % max.
Current consumption		12 mA max.
Control output	Output type	NPN open collector output
	Load power supply voltage	5 to 24 VDC
	Load curren	100 mA max.
	Residual voltage	at 100 mA load current: 0.8 V max. at 40 mA load current: 0.4 V max.
Protection circuits		Output short-cut protection
Response frequency elements		3 kHz max.
Illumination on the surface receiver		Fluorescent light: 1000 lx max.
Ambient temperature		Operating: -25 to 55 ℃ (with no icing) Storage: -30 to 80 ℃ (with no icing)
Ambient humidity		Operating: 5 to 85 % (with no condensation) Storage: 5 to 95 % (with no condensation)
Vibration resistance		Destruction: 10 to 2000 Hz, peak acceleration 100 m/s², 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods)
Shock resistance		Destruction: 500 m/s² for 3 times each in X, Y, and Z directions
Degree of protection		IP64 IEC60529
Connection method		Pre-wired models
Cable length		2 m
Weight		Package: Approx. 20 g
Material		Case: Polybutylene terephthalate (PBT)
