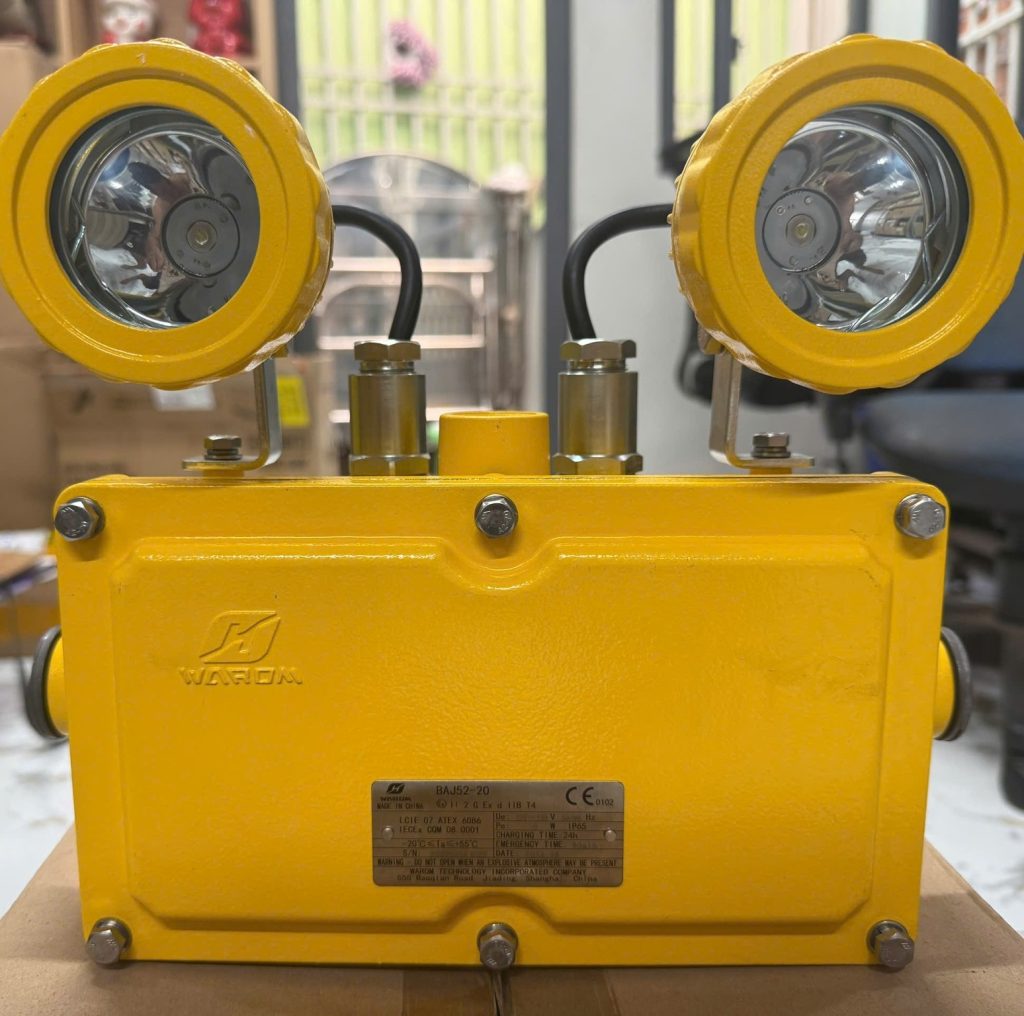

Đèn Khẩn Cấp Chống Nổ Explosion-Proof Emergency Warom BAJ52-20

Đèn Chống Nổ / Warom

THÔNG SỐ KỸ THUẬT

Explosion protection:
- IECEx (Gas and dust): Ex d IIC T Gb; Ex t IIIC T Db IP66
- ATEX (Gas and dust): II 2 G Ex d IIC T Gb; II 2 D Ex tb IIIC T Db IP66
Certificates: IECEx, ATEX, CU-TR
Material:
- Enclosure: Copper-free Aluminium Alloy, powder coated surface, yellow (RAL1021)
- Transparent cover: Toughened glass, stands 4J impact
- Internal reflector: High-purity aluminium
- External reflector (optional): Pure aluminium, anodic-oxidation treatment for surface
- Exposed fastener: Stainless steel
Ballast: Electromagnetic ballast, rapid starting, stable performance
Lamp holder: E27
Lamp power: 70W, 80W, 100W, 125W, 150W
Rated luminous flux: 3800~13500lm
Rated voltage: 220~240V AC 50Hz (60Hz is optional)
Earthing protection: M5 (internal & external earth bolts)
Degree of protection: IP66
Ambient temperature: -60°C~+55°C
Terminal: 3 x 1.5~4mm² (L+N+PE)
Cable entries: 2 x M25 x 1.5 for bracket type; 1 x M25 x 1.5 for pole type
Cable glands: DQM-I (Ex d) or DQM-II (Ex d) is recommended
Mounting: L: pole type, K: bracket type, D: hook type
